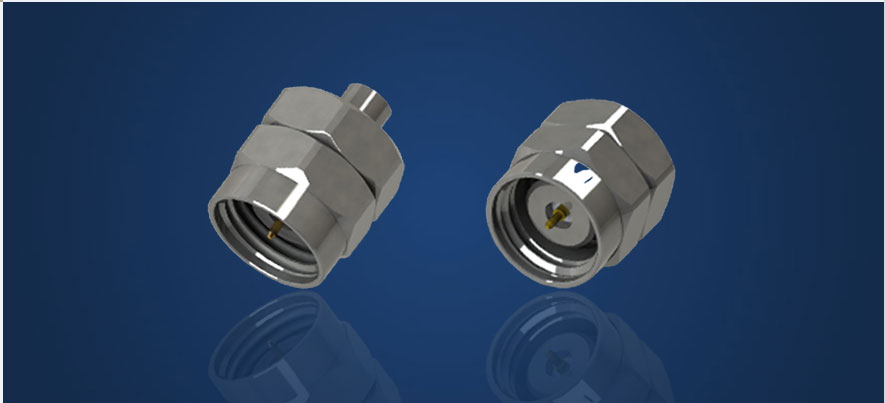

Application

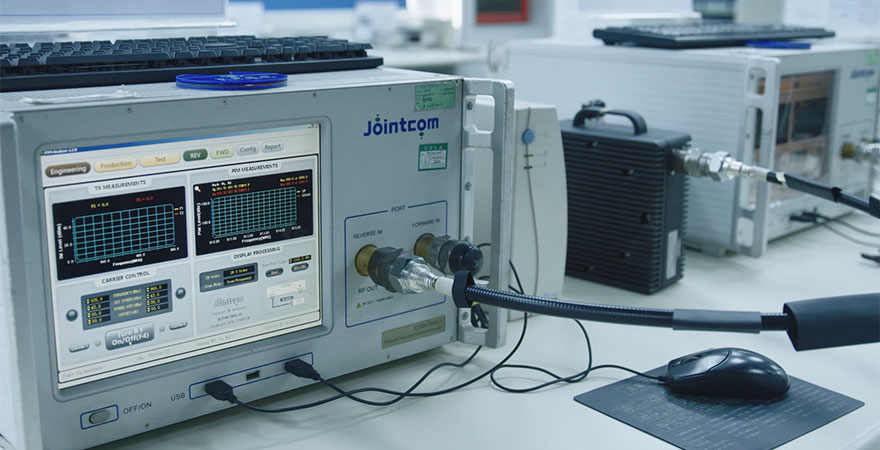

- Precision measurements in high microwave applications up to 67 GHz
- For E-band applications
| Electrical Performance | |
|---|---|
| Characteristic impedance | 50 Ohm |
| Frequency range | 0-67 GHz |
| Operating voltage | 335 V(RMS) |
| Medium pressure | 1000 V(RMS) |
| Conductor resistance | Inner conductor: ≤2.2 mΩ (initial value) |
| Outer conductor: ≤0.15 mΩ (initial value) | |
| Insulation resistance | ≥500 mΩ |
| VSWR | ≤1.35 |
| Mechanical Characteristics | |
|---|---|
| Center contact retention force | >4 lbs |
| Coupling torque | 7.0～8.9 in.lbs |
| Coupling nut retention force | >60 lbs |
| Durability | >500 cycles |
