Application

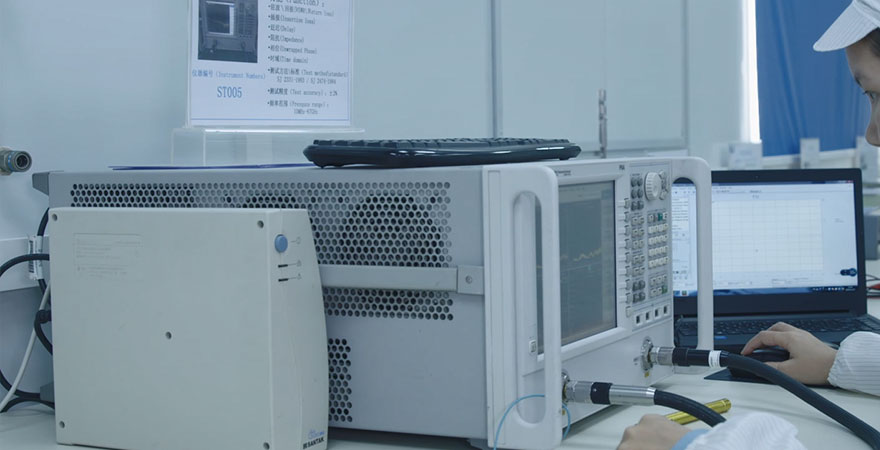

- Precision measurements in high microwave applications up to 40GHz .
- For E-band applications .

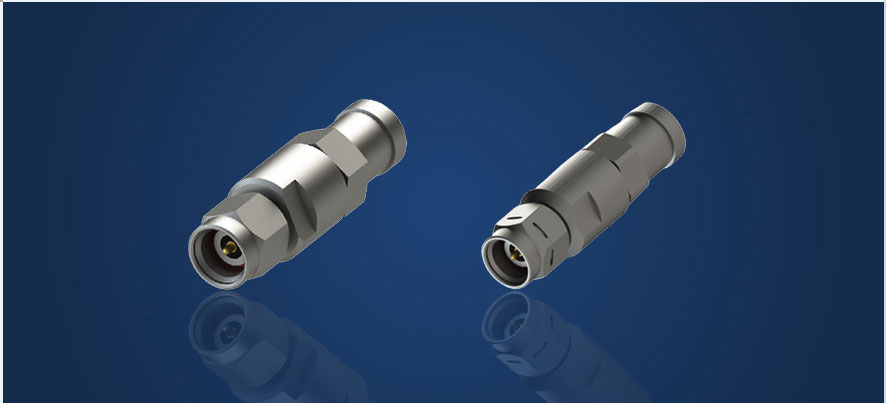

2.92mm connectors, male
or female type with 50 Ohm impedance.
There are thread type, bulkhead type, 2 holes or 4 holes panel mount type and mountless options.
2.92mm connector designs include clamp/solder or mount on site and other
customized connectors.
Electrical Performance | |
---|---|
Impedance | 50 Ohm |
Frequency range | 0-40 GHz |
Operating Voltage | 335 V(RMS) |
Dielectric withstanding voltage | 1000V(RMS) |
Conductor resistance | Inner conductor: ≤0.75 mΩ (initial value) |
Outer conductor: ≤0.13 mΩ (initial value) | |
Insulation resistance | ≥1000 mΩ |
VSWR | ≤1.35 |
Mechanical Characteristics | |
---|---|
Center pin retention force | >4 lbs |
Coupling torque | 5.3~8.9 in.lbs |
Coupling nut retention force | >68 lbs |
Durability | >500 cycles |
SLK Part Number:5P9M15S-A231
Cable:HF-190
SLK Part Number: 5P9M15S-A457-001
Cable:SLB-500
