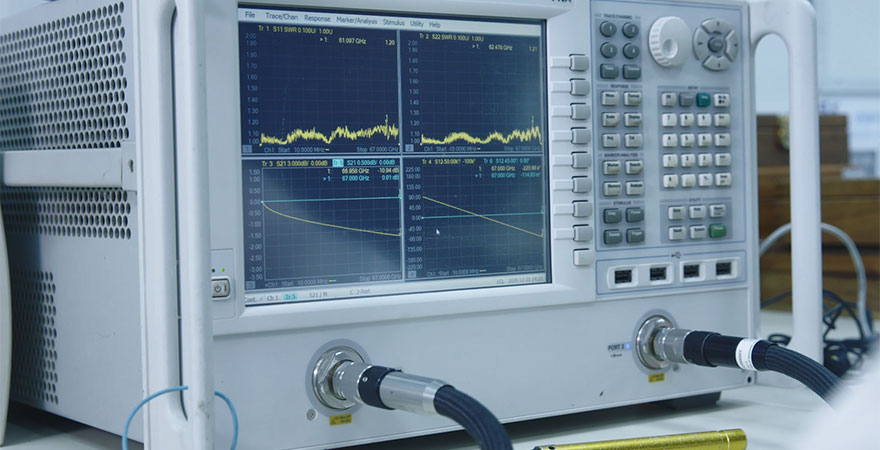

- Precision measurements in high microwave applications up to 50GHz .
- For E-band applications .

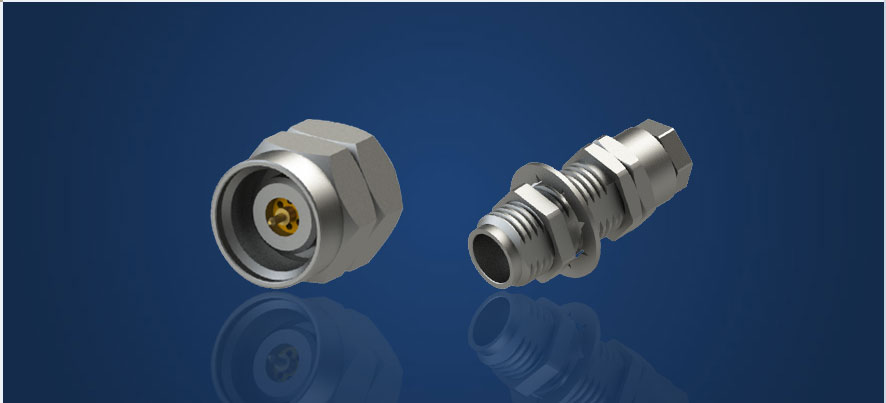

2.4mm connectors, male
or female type with 50 Ohm impedance.
There are thread type,bulkhead type, 2 holes and 4 holes panel mount type, and mountless options.
2.4mm connector designs include clamp/solder or mount on site and other
customized connectors.
Electrical Performance | |
---|---|
Impedance | 50 Ohm |
Frequency range | 0-50 GHz |
Operating Voltage | 335 V(RMS) |
Dielectric withstanding voltage | 1000V(RMS) |
Conductor resistance | Inner conductor: ≤3.0 mΩ (initial value) |
Outer conductor: ≤0.15 mΩ (initial value) | |
Insulation resistance | ≥500 mΩ |
VSWR | ≤1.35 |
Mechanical Characteristics | |
---|---|
Center Pin retention force | >4 lbs |
Coupling torque | 7.0~8.9 in.lbs |
Coupling nut retention force | >68 lbs |
Durability | >500 cycles |
SLK Part Number: 5P4M15S-A436-001
Cable:SLB-330-P
SLK Part Number: 5P4M15S-A470-005
Cable:SPB-360
SLK Part Number: 5P4M15S-A471-002
Cable:SLD-086
SLK Part Number: 5P4M15S-S01
Cable:UT-085-TP
SLK Part Number: 5P4M15S-A82
Cable:TFlex-405
SLK Part Number: 5P4F25S-H21
Mounting:2 hole flange
SLK Part Number: T-5P4F80S-H41
Mounting:end-launch
SLK Part Number: 5P4F80S-H21-001
Mounting:2 hole flange
SLK Part Number: 5P4F85S-H21-002
Mounting:2 hole flange
