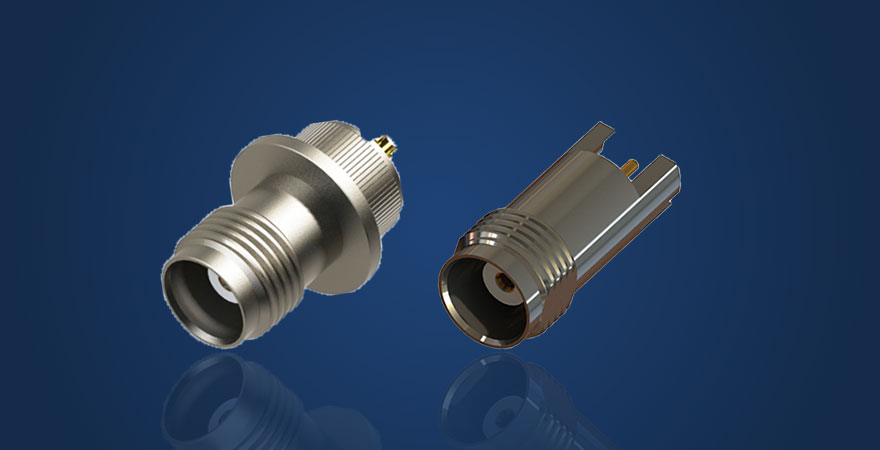

TNC

TNC type RF coaxial connector is a connector with a threaded connection mechanism for use in small and medium power applications. It has the characteristics of low voltage standing wave ratio, stable performance and high reliability, and has been widely used in aerospace, microwave communication and various electronic equipment. The application frequency of this product can reach 18GHz, with strong shock resistance, high reliability, excellent mechanical and electrical properties, and a fast-connecting screw-fit mechanism. After professional verification, Superlink's TNC series RF coaxial connectors have good performance and meet the MIL-C-39012 standard, GJB681A standard, and IEC6016-9 standard.

Electrical Performance
Characteristic impedance	50 Ohm
Frequency range	DC-18 GHz
Operating voltage	500 V(rms)
Medium pressure	1500V(rms)
Conductor resistance	Inner conductor: ≤1.5 mΩ (initial value)
Conductor resistance	Outer conductor: ≤0.5 mΩ (initial value)
Insulation resistance	≥5000 mΩ
VSWR	Straight type: ≤1.30 (typical value)
VSWR	Curved type: ≤1.35 (typical value)

Mechanical Characteristics
Male and female pull out force	≤2.5 lbs （slide-in structure）
Center needle pullout force	≤2 lbs
Center pin retention	≥6 lbs
Durability	500 times

Application

Used in medium and small power applications.
Widely used in wireless communication, instrumentation, such as aerospace, microwave communication and other fields of electronic equipment.
