Application
- AntennasAntennas .
- Broadband .
- Industrial .
- Test & measurement .
- Highly shielded interconnect for high data rate applications .
- Defence or aerospace applications .

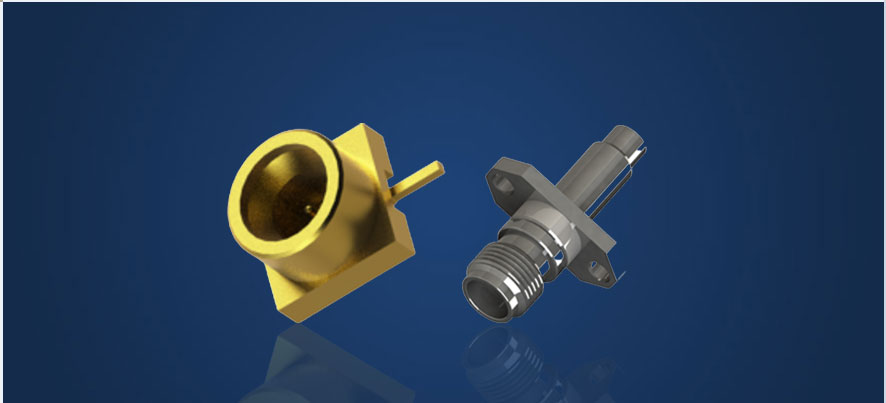

The SLK Mini-SMP interface is a miniature interface that is approximately 69% of the standard SMP size and is commonly used for miniaturization of high-frequency coaxial modules and provides push-in and snap-in connections. It is mainly used for high-speed signal transmission.
Full stop and smooth hole fit systems provide respective levels of engagement/disengagement forces. Plugs are available in a smooth-bore version (for plug-in technology and backplane applications) and a vibration-resistant full stop type for the highest mechanical loads in aerospace engineering.
| Electrical Performance | |
|---|---|
| Characteristic impedance | 50 Ohm |
| Frequency range | 0-300 MHz |
| Voltage Rating | 175 V(RMS) |
| Dielectric Withstanding Voltage | 500 V(RMS) |
| Conductor resistance | Center Contact: ≤6.0 mΩ (initial value) |
| Outer Contact: ≤2.0 mΩ (initial value) | |
| Insulation resistance | ≥5000 mΩ |
| VSWR | Straight type: ≤1.30 (typical value) |
| Curved type: ≤1.35 (typical value) | |
| Mechanical Characteristics | |
|---|---|
| Male and female insertion force | Typical value: 4.5 lbs (Full Detent ) 2.5 lbs (Smooth Bore) |
| Male and female pullout force | Typical value: 6.5 lbs (Full Detent ) 1.5 lbs (Smooth Bore) |
| Center pin retention | ≥1.5 lbs |
| Durability | 100 times (Full Detent ) 500 times (Smooth Bore) |
