- Suitable for applications in small power applications

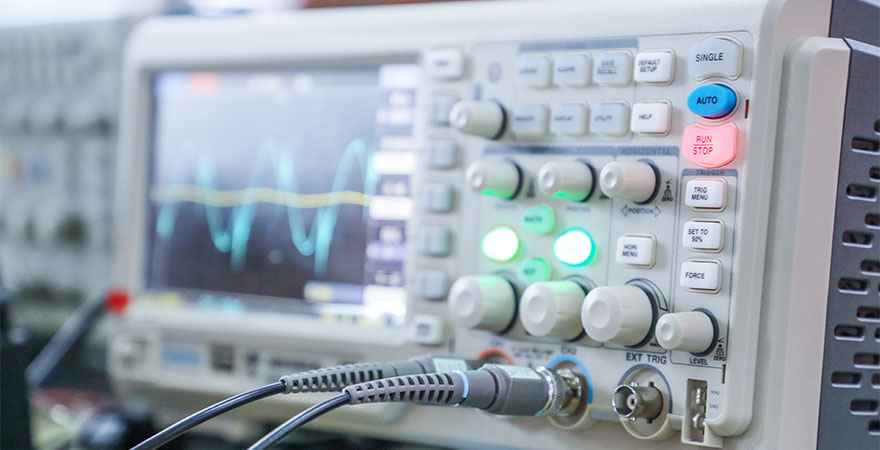

- Widely used in radio equipment and instrumentation, such as wireless communication systems, televisions, test equipment and other fields.
Electrical Performance | |
---|---|
Characteristic impedance | 50 Ohm |
Frequency range | DC-6 GHz |
Operating voltage | 500 V(rms) |
Medium pressure | 1500 V(rms) |
Conductor resistance | Inner conductor: ≤1.5 mΩ (initial value) |
Outer conductor: ≤0.2 mΩ (initial value) | |
Insulation resistance | ≥5000 mΩ |
VSWR | Straight type: ≤1.30 (typical value) |
Curved type: ≤1.35 (typical value) |
Mechanical Characteristics | |
---|---|
Central needle insertion force | ≤2 lbs |
Center needle pullout force | ≥2 ounce |
Center pin retention | ≥6 lbs |
Durability | 500 times |

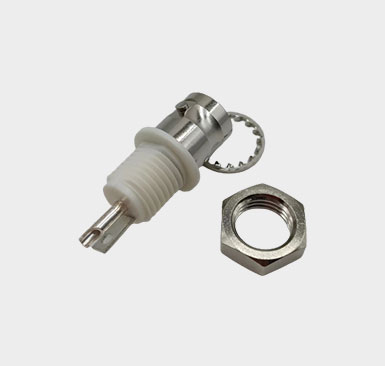

SLK Part Number: 5BNF25R-P00-004
Mounting:PCB through hole
Frequency: 3 GHzSLK Part Number: 5BNF25S-P00-004
Mounting:PCB through hole

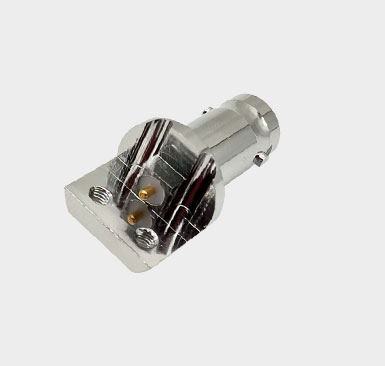

Frequency: 4 GHzSLK Part Number: 5BNF25S-P01-002
Mounting:2 hole flange
Frequency: 4 GHzSLK Part Number: 5BNF25S-P01-006
Mounting:PCB end-launch
Frequency: 4 GHzSLK Part Number: 5BNF25S-P41-003
Mounting:PCB end-launch
Frequency: 4 GHzSLK Part Number: 5BNF25S-P41-016
Mounting:PCB through hole
Frequency: 4 GHzSLK Part Number: 5BNF45S-P02
Mounting:4 hole flange
Frequency: 6 GHzSLK Part Number: 5BNF85S-A00
Mounting:4 hole flange
Frequency: 2 GHzSLK Part Number: 5BNF85S-A00-002
Mounting:4 hole flange
Frequency: 2 GHzSLK Part Number: 5BNM25R-P41
Mounting:PCB
Frequency: 3 GHzSLK Part Number: 5BNF25S-P01-002
Mounting:PCB
Frequency: 4 GHz

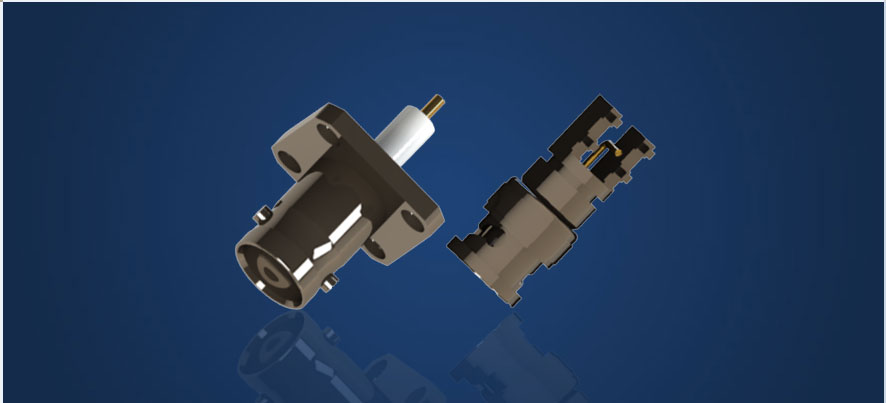

SLK Part Number:5BNF45S-P02
Mounting:4 hole flange
Frequency: 6 GHz
