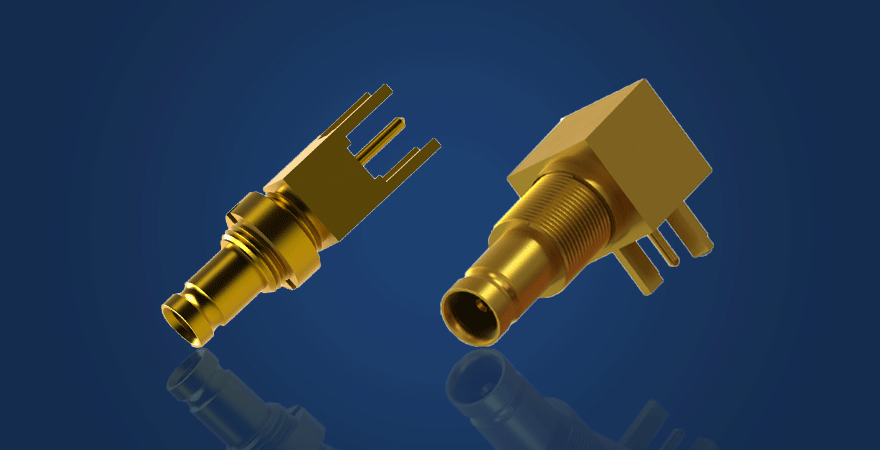

SLK 1.0/2.3 series RF coaxial connector is a slide-in connector designed according to the German standard DIN 41626/2 (D-type connector). The application frequency of 1.0/2.3 series connectors can reach 10GHz, and the impedance is 50Ω.
1.0/2.3 series connectors have the characteristics of small size, quick connection, high service life, and meet the standard IEC60169-29.
The 1.0/2.3 series connectors are suitable for insertion into mixed design connectors (DIN 41626 type M). It is often used in communication products that require space saving or in connection circuits where space is limited.

Electrical Performance
Characteristic impedance	50 Ohm
Frequency range	0-10 GHz
Operating voltage	250 V(rms)
Medium pressure	750 V(rms)
Conductor resistance	Inner conductor: ≤4.0 mΩ (initial value)
Conductor resistance	Outer conductor: ≤2.5 mΩ (initial value)
Insulation resistance	≥1000 mΩ
VSWR	Straight type: ≤1.30 (typical value)
VSWR	Curved type: ≤1.35 (typical value)

Mechanical Characteristics
Male and female insertion force	≤2.5 ounces
Male and female pullout force	≥1 ounce
Center pin retention	≥4 lbs
Durability	500 times

Application

Suitable for fast connection with high frequency, internal space small applications.
Widely used in wireless communications, industrial applications, military and high vibration environment and other applications.

Products Series

Cable connector
PCB mounting connectors

Product List
